01
Universal Non-Coating cBN
Universal noncoating cBN -
DB2000 is corresponding universal grade to processing of the total heat-treated steel in a non-coated cBN.
-
02

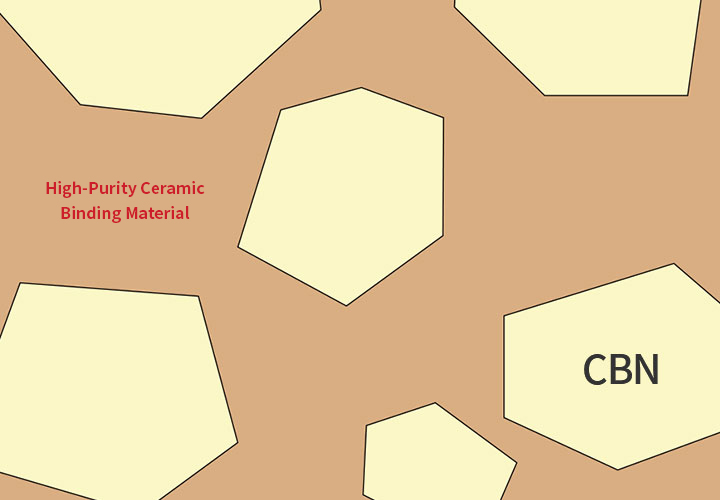

high purity ceramic binder
High purity ceramic bonding material -
DB2000, a non-coated cBN, is a new high purity ceramic binding material that reduces impurities to the limit to secure heat resistance and strong toughness.
-
03
High economic feasibility
high economic efficiency -
It boasts stable performance compared to the price by improving defect resistance and wear resistance.
-
04
Non-coating CBN
Noncoating CBN -
- - Binder: TiN
- - CBN content: 50%–55%,
- - Particle size: 2 μm
- - Hardness HV (Gpa): 31–34
Heat resistance and strength were improved by high purity TiCN ceramic binding material.
-
05
Application area
Applicable area -

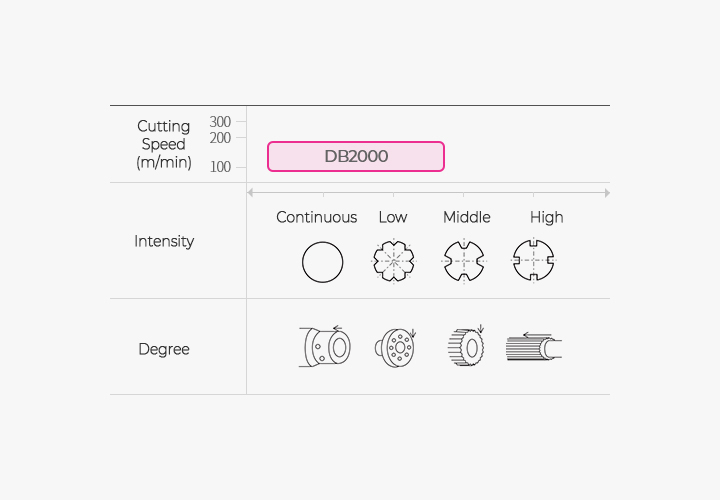

This product is recommended for heat-treated steel processing and is optimized for low and medium interruption cutting.
-
06

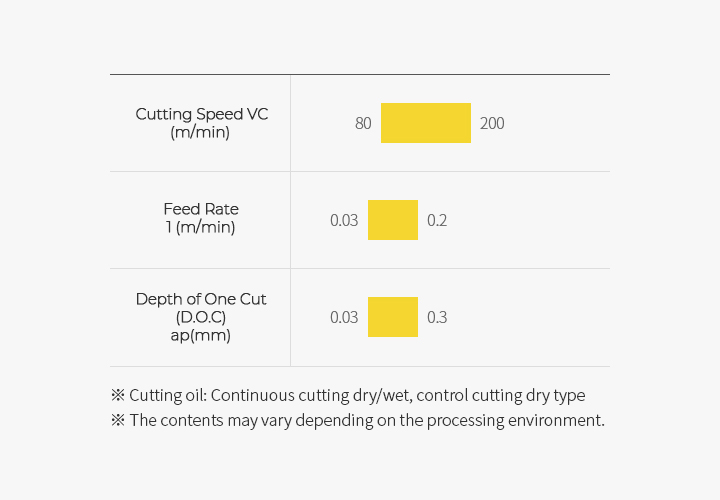

Recommended Cutting Conditions
Recommended cutting conditions -
- - Cutting speed: 80 m to 200 m
- - Feed: 0.03 mm to 0.2 mm
- - Depth of one cut: 0.03 mm to 0.3 mm
-
-
Suitable for machining heat-treated steel
- Products optimized for continuous and medium interruption machining of heat-treated steel
-
-
-
defect resistance improvement.
- High-level compatibility of fracture resistance and abrasion resistance
-
-
-
Newly developed ceramic binder
- High-purity TiN ceramic binder improves heat resistance and strength
-
-
-
1 depth of cut
- Depth of cut from 0.03mm to 0.3mm can be set
-
