- DNC 350
- DINOX Coated CBN
List
-
01
Solutions in the interruption area
continuous processing solution -
DNC350 is the first recommended production for interruption area, and it reduces your production time with improved quality.
-
02
Increased service tool life
Increased service life -
The coating insert, DNC350, maintains functionality and precision for a long time with advanced coating technology, improving productivity.
-
03
Coating Insert
Coating insert -
- - Binder: TIN
- - CBN content: 60%–65%
- - Particle size: 1 μm
- - Hardness HV (Gpa): 33–35
Advanced coating technology increases functionality and precision
-
04

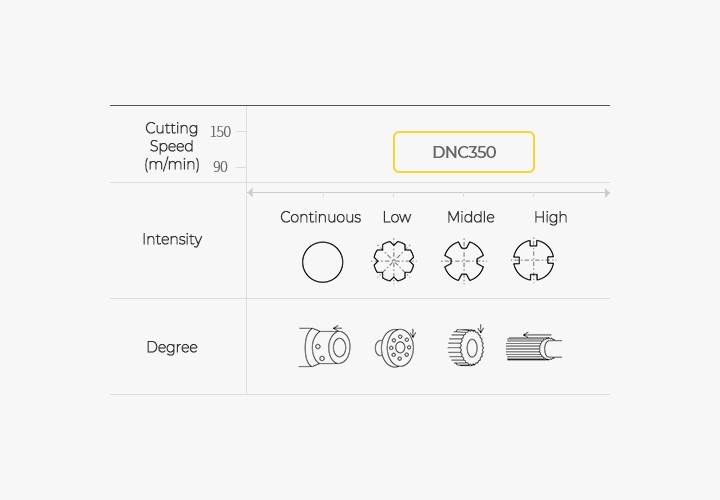

Application area
Applicable area -
This product is recommended for heat treated steel processing and is optimized for medium and high interrupted cutting
-
05

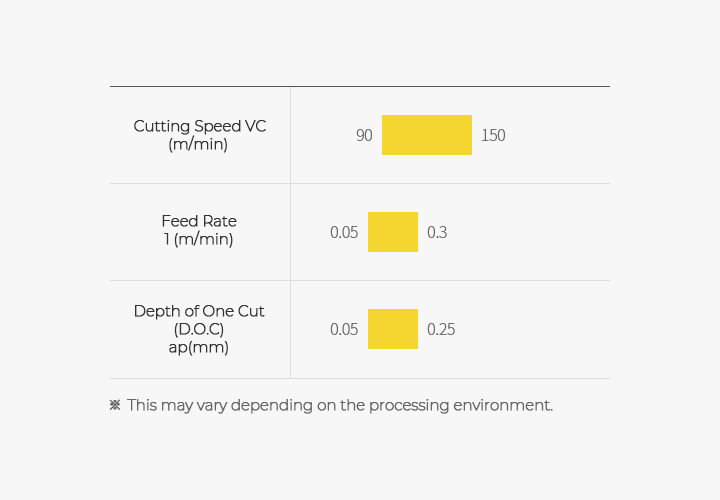

Recommended Cutting Conditions
Recommended cutting conditions -
- - Cutting speed: 90 m to 150 m
- - Feed: 0.05 mm to 0.3 mm
- - Depth of one cut: 0.05 mm to 0.25 mm
Improved wear resistance compared to other brand.
-
-
Suitable for machining heat-treated steel
- Products optimized for medium and high interrupted machining of heat treated steel
-
-
-
Economical excellence
- Economical product with extended tool life
-
-
-
stable coating
- Long-term maintenance of functionality and precision with advanced coating technology
-
-
-
1 depth of cut
- Depth of cut from 0.05mm to 0.25mm can be set
-
