PVTM Powervice
- Popular power vice, easy to use
- Applied instrumental Gravity Unit
- Height tolerance 0.01 mm, available in parallel
- Included In (18T) / Out (23T) sub-Jaw.
-
PVT Max Width Width
Top MAX 520mm
Center MAX 300mm
-
PVT Max Width Height
MAX 110mm
※ Maximum width (based on 6 inches)

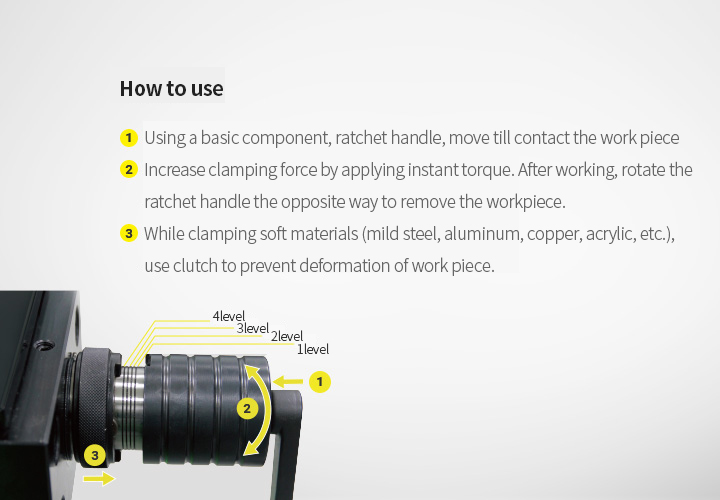

Basic Components
-
Handle
-
Ratchet handle
-
Sub-Jaw
-
Accessory
※ In/out sub jaw able to use in PVT.

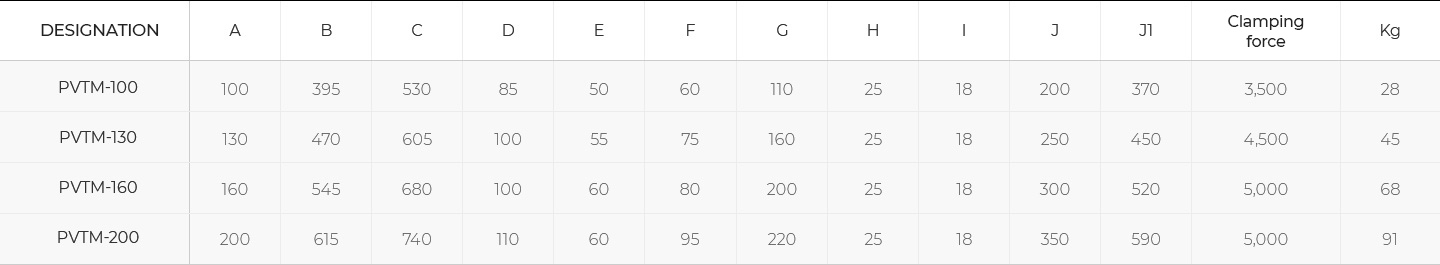

Drawing
(mm)
