- PVT_Power vise(Standard type)
- MC POWER VISE - PVT
List
PVT Power Vice
- Applied instrumental gravity unit
- Designed minimized damage in work piece
- Height tolerance 0.01 mm, available in parallel work
- Included In (18T) / Out (23T) sub-Jaw.
- Improved durability by using high-rigid materials
-

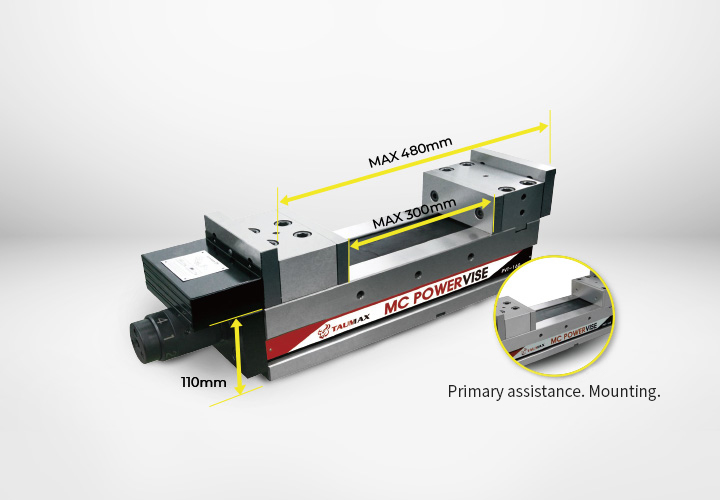

PVT Max width
Top MAX 480 mm
Center MAX 300 mm
-
PVT Max Width
MAX 110mm
※ Maximum width (based on 6 inches)
Basic Components
-
Handle
-
Ratchet handle
-
Sub Jaw
-
Accessory
※ In/out sub jaw able to use in PVTM.

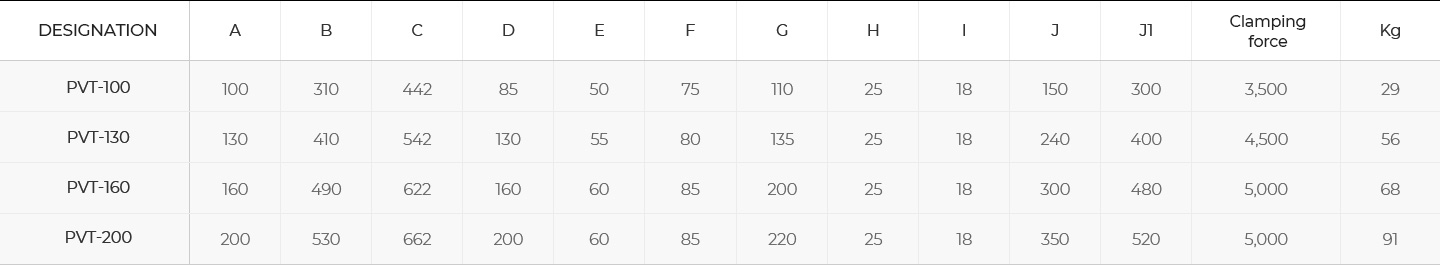

Drawing
(mm)
