- ROT_Run-out tester
- Run-out tester
List
-
01
The Importance of Run-out
Importance of Run-out -
Precise Run-out will helps you improving accuracy of workpiece measurement and tool life. DINE Run-out tester, ROT, can support maximum 3 microns of run-out at 300 mm points.
-
02
Simple measurement methods
Simple Measurement Methods -
Easy to measure the run out by inserting the tool in the ROT and rotating the tool easily.
-
03
ROTM-Multi-type (~Ø400)
ROTM-Multi-type (~£400) -
Multifunctional ROTM able to measure the cutting length and diameter of tool at the same time, and able to apply from ISO30 till ISO 50.
-
04
ROTS-General Type (~Ø150)
ROTS-General (~£150) -
From BT50 to BT30 can be applicable, easy to handle and economical
Advantage of DINE ROT
-
-
Run-out Measurement
- Supports up to 3 microns of run-out at 300 mm points
-
-
-
Easy to measure
- After inserting the tool, measure the run out by rotating it.
-
-
-

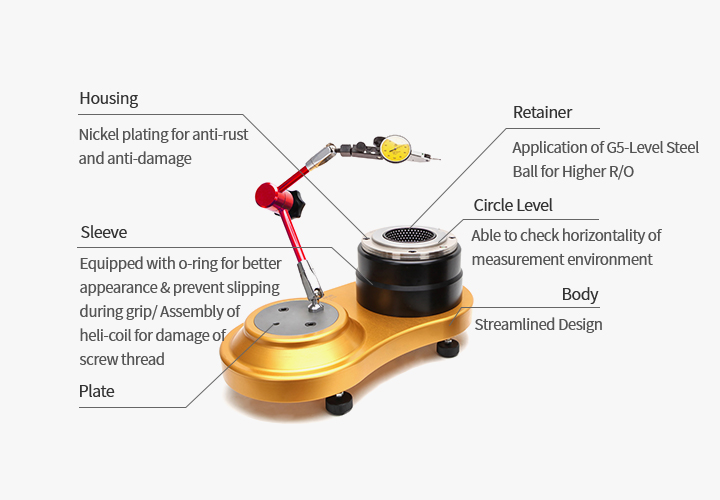

ROTM-Multifunctional
- Able to measure cutting length and too diameter at the same time
-
-

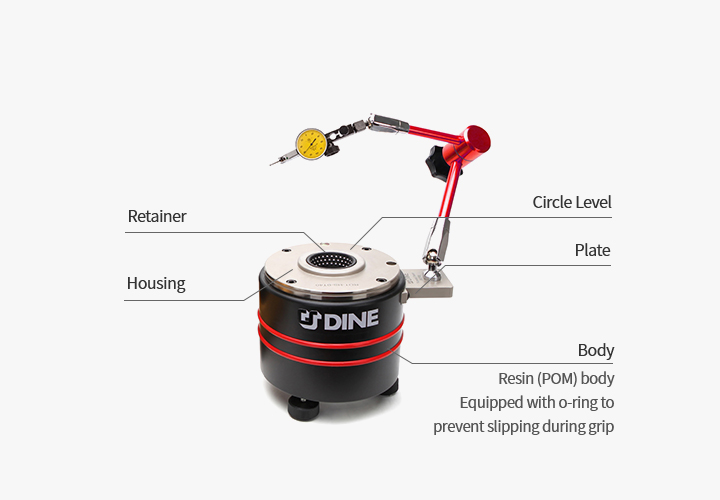

ROTS-General Type
- Easy to handle and economical
-
