01
Hydraulic Chuck Clamping Force Measuring Gauge
Hydraulic chuck pressure measurement gauge -
HDG is measuring instrument of clamping forces of hydraulic chuck to measure the clamping force in advance before defected tools happen due to weaking of clamping force, which will minimize the defected rate.
-
02
Easy to measure the force
Easy hydraulic measurement method -
Compared to conventional hydraulic chuck inspection methods, the work efficiency is improved by simple method and minimized the damage to the internal diameter of the hydraulic chuck by using torque wrench while measuring the clamping force.
Advantage of DINE HDG
-
-
Hydraulic Chuck Clamping Force Measuring Gauge
- Prevent defected ratio in advance by measuring the weakness of hydraulic chuck.
-
-
-
Easy to measure
- Improve efficiency by simple method, compared to conventional method.
-
-
-
Prevent tool damage
- Minimize damage to the internal diameter by using of torque wrench
-
-
-
Clear metrics

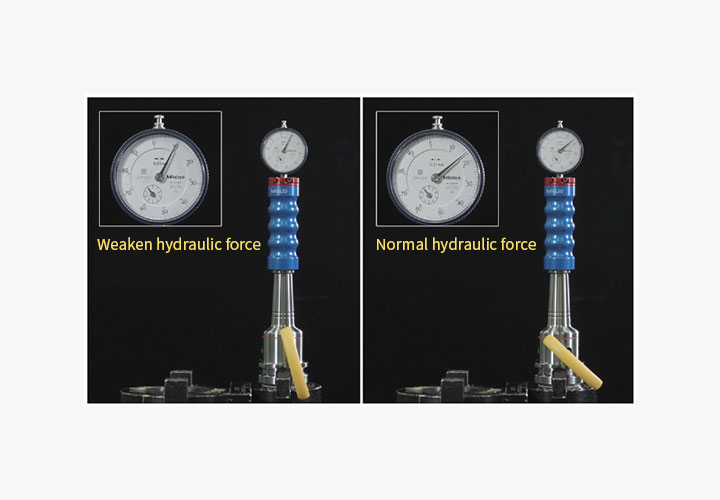

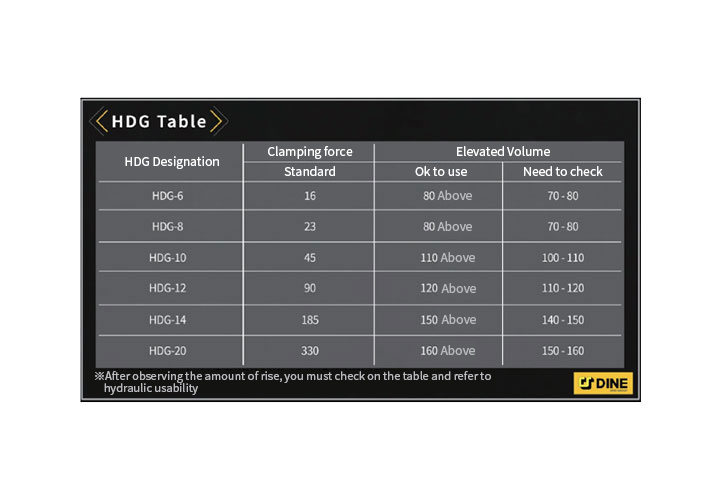

- After observing the gauge rise, determine whether hydraulic chuck can use by comparing to HDG Table.
-
