01
Zero-fit collet to compensate for run-out
Zero-fit collet compensates for runout -
We introduce the zero fit collet DZC from Dine Inc. for compatible hydraulic and milling chuck that can be precisely machining through run-out adjustment of the tool.
-
02

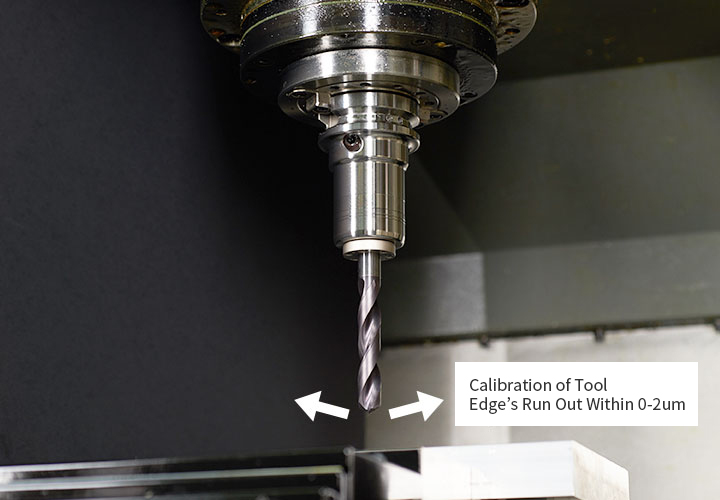

Ensure high machining quality
High machining quality guaranteed -
The run-out of the end of the tool can be calibrate within 0–2 μm, to improving the surface roughness and quality of the machining surface, and greatly improving the processing hole dimensions.
-
03

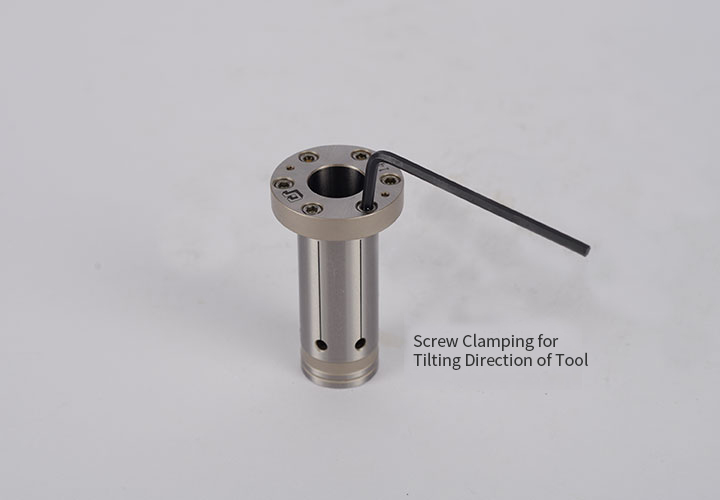

Easy run-out calibration
Easy runout compensation -
By tightening the fine-tuning screws in the direction of high straightness and run-out, the screw pushes the washer and corrects the tool's straightness, you can calibration run-out with a small force.
-
04

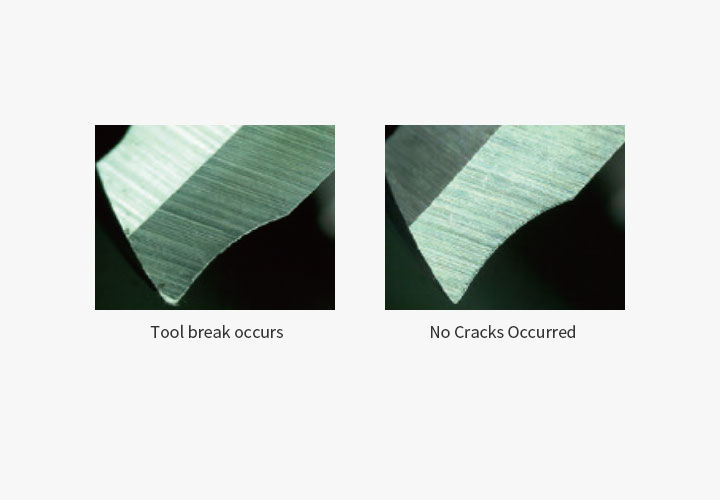

Increase tool life
Increased tool life -
You can improve the tool life of the end tool by calibrating the run-out of 10~20 μm to the end of the tool 0~2 μm.
-
-
Improved machining quality
- The surface roughness and quality of the machined surface are improved, and the precision of machined hole dimensions is greatly improved.
-
-
-
Easy run-out Calibration
- By tightening the adjusting screw, the tool tip can be corrected within 0~2㎛
-
-
-
Increase tool life
- End tool life can be improved by compensating runout to 0~2㎛
-
-
-
Product Features
- Dine hydraulic chucks and milling chucks are compatible , and tools can be tightened from ∅6 to ∅25
-
