DINOX
DB7500
DINOX Uncoated CBN

List

01

Solutions for sinter alloy machining

Solution for processing small alloys

DB7500 is among the non-coated cBN Optimized for finishing machining of sintered alloyI

02

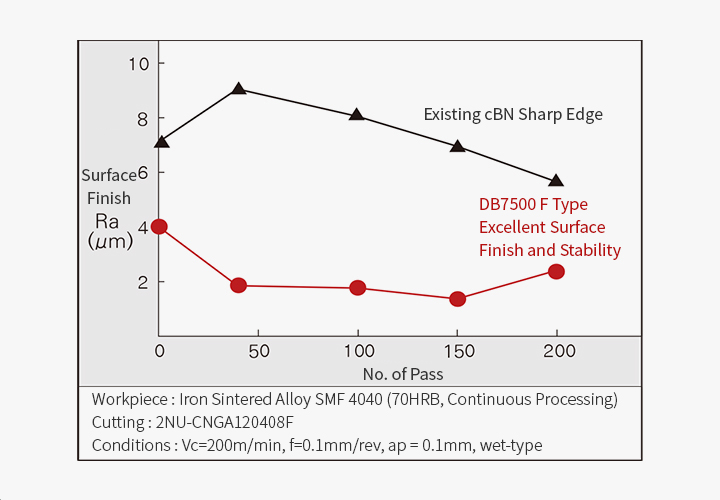

Excellent surface finish

Realize excellent shading

DB7000, a non-coated insert, proud of excellent surface finish and stability by sinters cBN intermediate particles at high density to increase bonding strength between cBN particles.

03

Non-coated CBN

Noncoating CBN
  • - Binder: CO compound
  • - CBN content: 90%~95%,
  • - Particle size: 1μm
  • - Hardness HV(Gap) : 41~44

It is possible to realize excellent surface roughness and machined surface quality.

04

Non-coated CBN

Noncoating CBN
  • - Binder: CO compound
  • - CBN content: 90%~95%,
  • - Particle size: 1μm
  • - Hardness HV(Gap) : 41~44

It is possible to realize excellent surface roughness and machined surface quality.

05

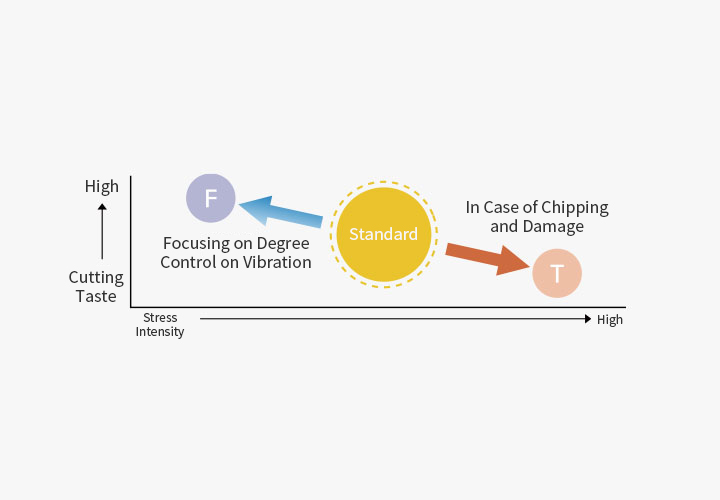

Selectable cutting edge type

Available in selection type

F type that emphasizes cutting taste, suppression of burrs and improvement of processing precision toughness reinforcement type T type are all can be produced.

The reason why non-coating CBN DB7500 from Dine Inc. is good

  • Suitable for sinter alloy processing

    Optimized product for finishing of sintered alloy

  • excellent surface finish

    Excellent surface finish and machined surface quality

  • stable machining

    It boasts a long service life and stable machining in high-speed finishing of cast iron sintered alloy difficult-to-cut materials .

  • Edge treatment products available

    High standard + 2 types of cutting edge treatment products , stable and long service life with various shapes and hardness
