- DNC 300
- DINOX Coated CBN
List
-
01
Solutions in the low-medium interruption area
continuous processing solution -
The newly released DNC300 is the first recommended grade from low interruption to medium interruption and improves quality compared to competitors, reducing your production time.
-
02
Chipping resistance, abrasion resistance
Improved abrasion resistance -
DNC300, a coating insert, has higher chipping resistance and wear resistance than competitors, enabling better productivity.
-
03
Coating Insert
Coating insert -
- - Binder: TIN
- - CBN content: 65%–70%,
- - Particle size: : 6 μm
- - Hardness HV (Gpa): 29–31
with stable coating minimize coating peeling
-
04

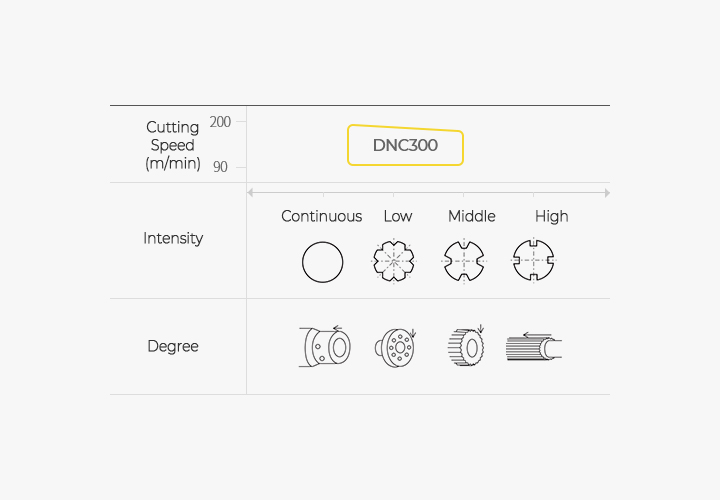

Application area
Applicable area -
This product is recommended for heat treated steel processing and is optimized for low and medium speed cutting.
-
05

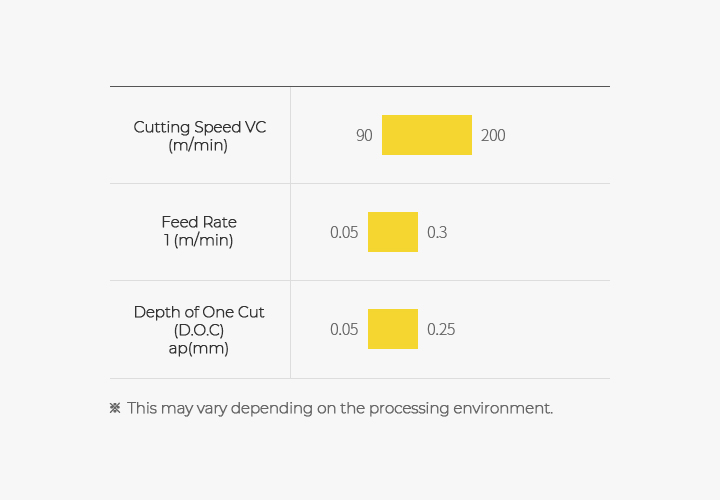

Recommended Cutting Conditions
Recommended cutting conditions -
- - Cutting speed: 90 m to 220 m
- - Feed: 0.05 mm to 0.3 mm
- - Depth of one cut: 0.05 mm to 0.25 mm
By adopting high hardness thin film Oxidation resistance, chipping resistance and binding resistance has been greatly improved.
-
-
Suitable for machining heat-treated steel
- Products optimized for continuous and low interrupted machining of heat-treated steel
-
-
-
Excellent chipping resistance
- Improved chipping and abrasion resistance compared to competitors
-
-
-
stable coating
- Stable coating minimizes coating peeling
-
-
-
1 depth of cut
- Depth of cut from 0.05mm to 0.3mm can be set
-
