01
Solutions of Continuous Processing
continuous processing solution -
DNC250, the first recommended breed of continuous processing, reduces your production time with high productivity.
-
02
Improved wear resistance
Improved abrasion resistance -
The coating insert, DNC250 has improved wear resistance through the application of PVD thin films.
-
03
Coating Insert
Coating insert -
- - Binder: TIN
- - CBN content: 65%–70%,
- - Degree: 6 μm
- - Hardness HV (Gpa): 32–34
Application of thin films with high hardness, affinity, and chipping resistance;
-
04
Application area
Applicable area -

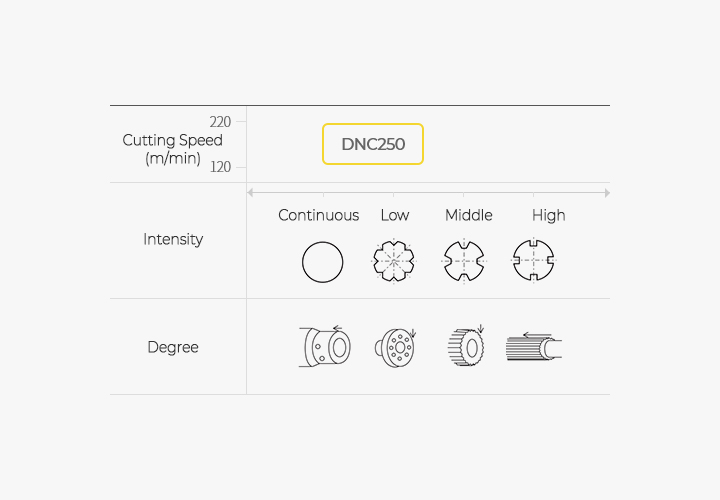

This product is recommended for heat treated steel processing and is optimized for continuous and low interruption.
-
05

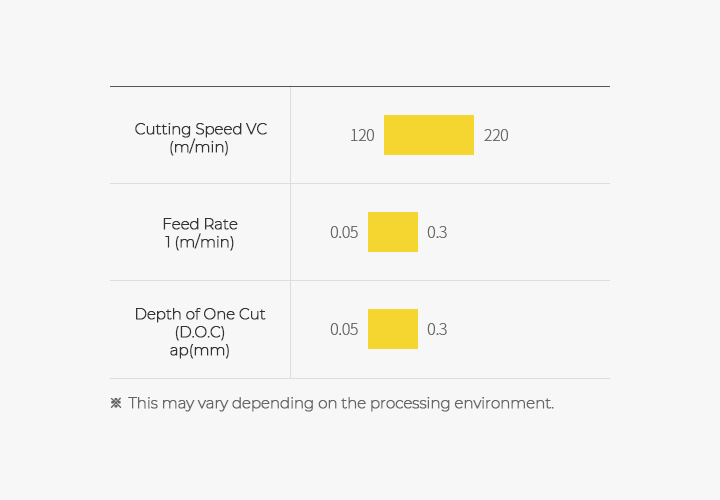

Recommended Cutting Conditions
Recommended cutting conditions -
- -Cutting speed: 120m ~ 220m
- -Feed: 0.05mm ~ 0.3mm
- -Depth of one cut: 0.05mm ~ 0.3mm
Wear resistance has been improved by applying of PVD coating.
The reason why Coating CBN DNC250 from Dine Inc. is good
-
-
Suitable for processing heat-treated steel
- Products optimized for continuous and weakly interrupted processing of heat-treated steel
-
-
-
PVD coating applied
- General-purpose CBN capable of continuous to weakly interrupted processing by applying PVD coating
-
-
-
Excellent wear resistance
- Boasting excellent wear resistanc
-
-
-
Depth of one cut
- Depth of cut from 0.05mm to 0.3mm can be set
-
